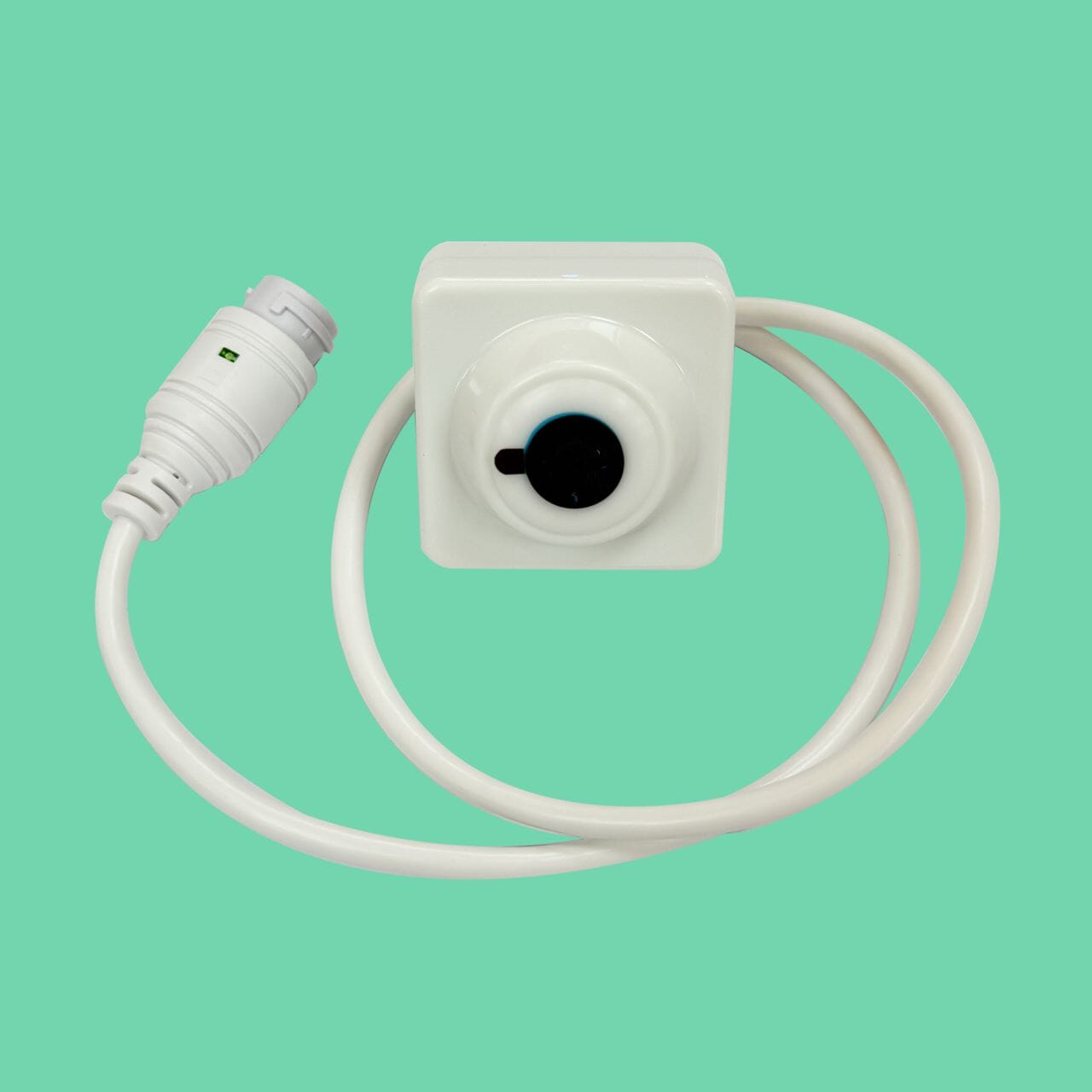

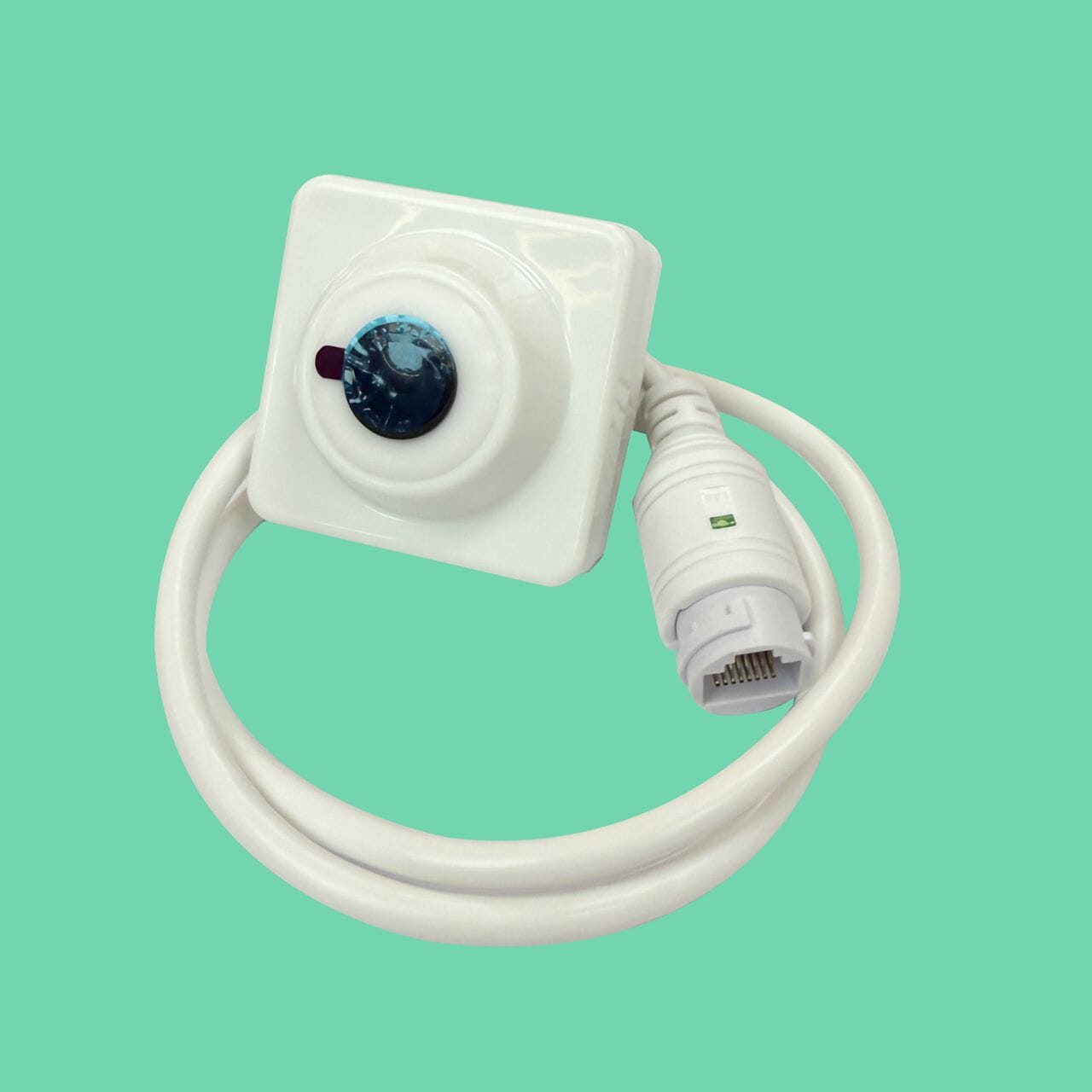

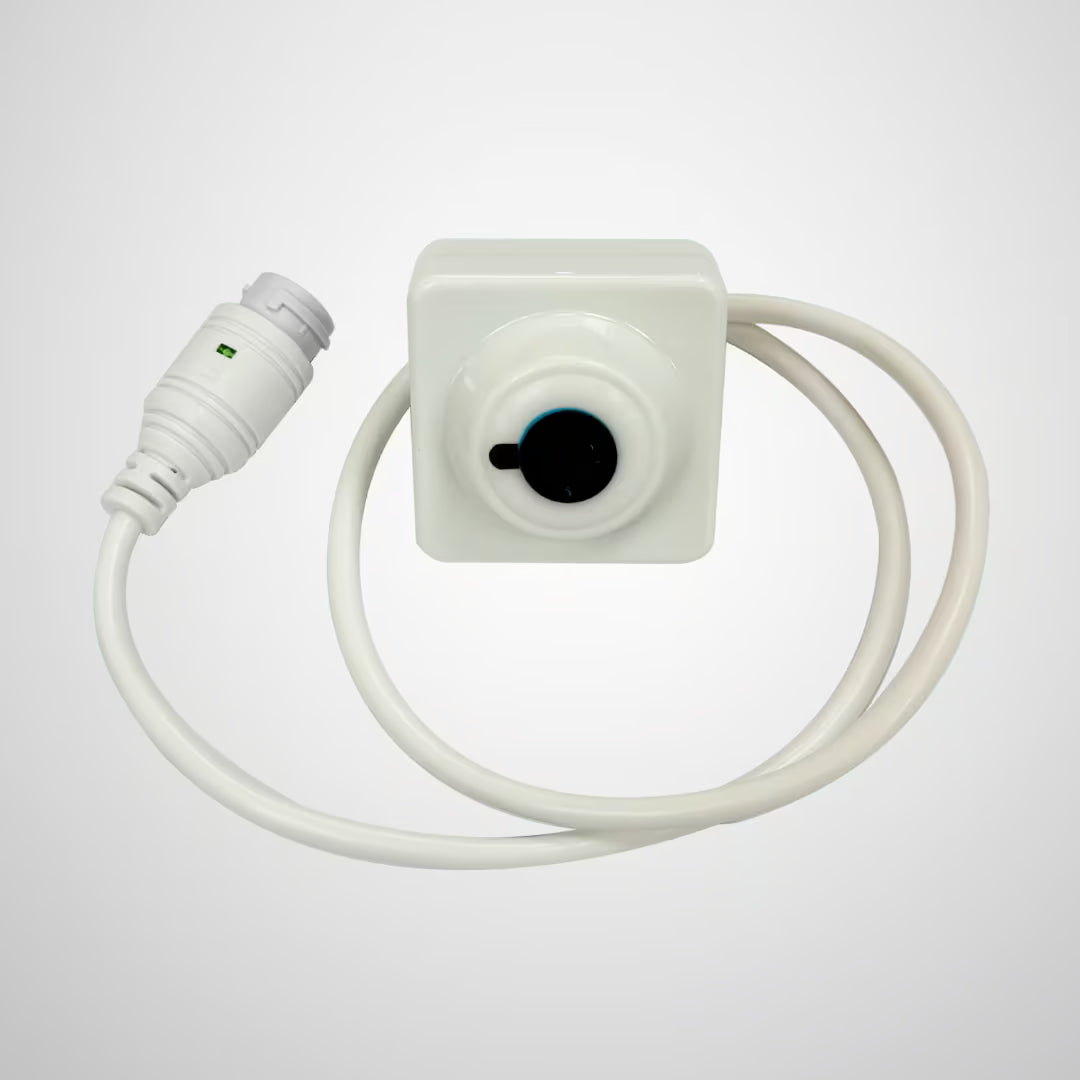

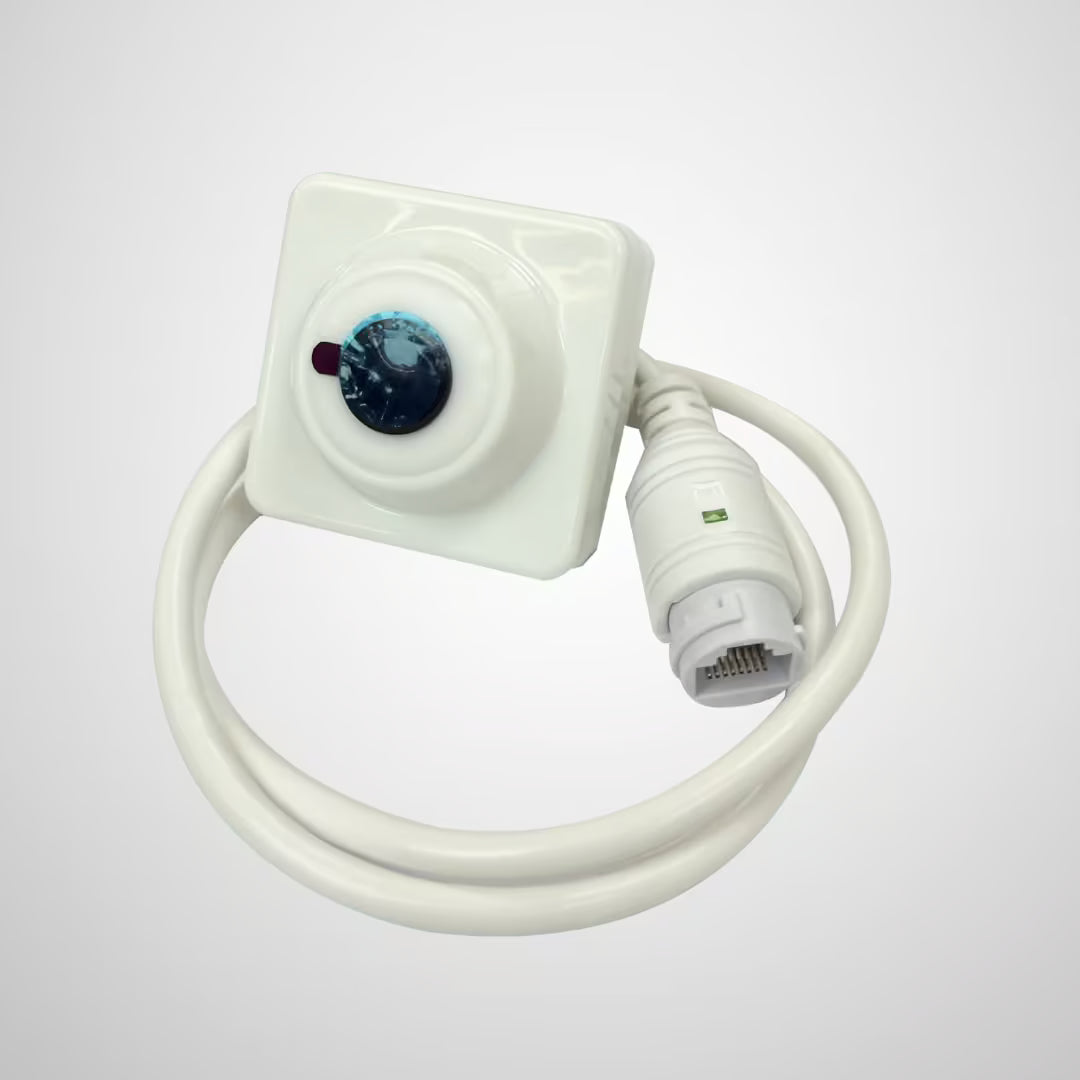

Dynamic Recognition IP Camera for Smart Coolers
Model: MV-CE2C4-DX1 (F1)
1. Product Overview
The MV-CE2C4-DX1 (F1) is a dynamic recognition network camera designed for smart retail cabinets. It features a wide-angle lens and a 1080P high-definition sensor, ideal for monitoring and AI-driven product recognition in unmanned or unattended vending machines. The camera provides high-quality image performance, optimized encoding and transmission, fast integration with standard protocols, flexible structural design, and high reliability.
2. Key Features
Core Advantages:
- Proprietary ISP Technology: Utilizes a self-developed patented image optimization and 3D noise reduction algorithm for rapid light adaptation, high clarity, low noise, and image stability.
- Optimized AI Recognition for Vending Cabinets and Smart Coolers: Enhanced imaging under extreme lighting, reflection, and motion conditions, minimizing motion blur and compensating for quick illumination changes.
- H.264 Encoding: Provides more than double the compression ratio of MPEG-2 at equivalent image quality, ensuring better image fidelity and stronger error tolerance.
Product Highlights:
- 140° all-glass wide-angle lens for full coverage and precise recognition.
- High SNR low-illumination sensor for retail-grade image quality.
- Optimized low-latency encoding for real-time retail performance.
- Supports DHCP, remote upgrade, and reboot.
- Embedded Linux OS for stable and secure operation.
- 12V DC power input, RJ45 Ethernet connection.
- Aesthetic design for easy integration into hardware systems.
| Category | Item | Specification |
|---|---|---|
| Basic Information | Model | MV-CE2C4-DX1 / MV-CE2C4-DX1F1 |
| Operating System | Embedded Linux | |
| Default IP Address | 192.168.1.10 / 192.168.1.11 | |
| Lens | Structure | 4G + IR, all-glass |
| Aperture | F:2.6 ±5% | |
| Field of View (FOV) | Diagonal: 148°, Horizontal: 123°, Vertical: 64° ±5% | |
| Focal Length | 2.7 mm ±5% | |
| Back Focal Length | 4.8 mm ±5% | |
| Image Parameters | Sensor | 1/3" CMOS Sensor |
| Max Resolution | 1920(H) × 1080(V) | |
| Max Frame Rate | 25 fps | |
| Low Illumination | Supported | |
| Wide Dynamic Range | Supported | |
| Shutter | Electronic Rolling Shutter | |
| Video Processing | White Balance | Auto |
| 3D Noise Reduction | Supported | |
| Image Optimization | Patented ISP: adaptive lighting, motion de-blur | |
| Encoding Format | H.264 | |
| Image Resolution | Main stream: 1080P@25fps; Sub-stream: D1/VGA/640×360/CIF@25fps | |
| Protocol | Transmission Protocols | Supports HTTP, RTSP, ONVIF |
| Shell & Cable | Material | ABS |
| Cable Length | 70 cm total | |
| Cable Color | White | |
| Network Port | Type | RJ45 10/100M adaptive Ethernet with PoE support (requires power split cable for PC debugging) |
| Defogging | Supported | |
| Certification | Waterproof Rating | IPX6 |
| General Parameters | Power Input | DC 12V |
| Power Consumption | Max ≤ 1.2 W | |
| Operating Temperature | -15°C to 50°C |
